SM-80A  stirrup Bending machine 5- 6 mm

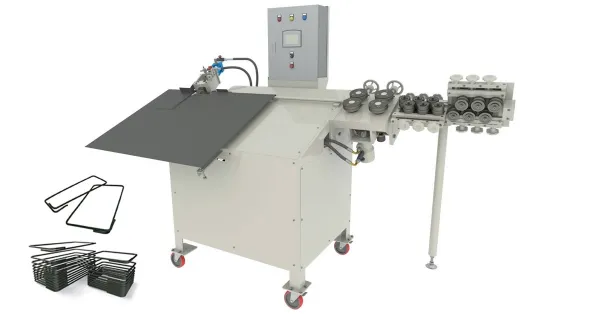

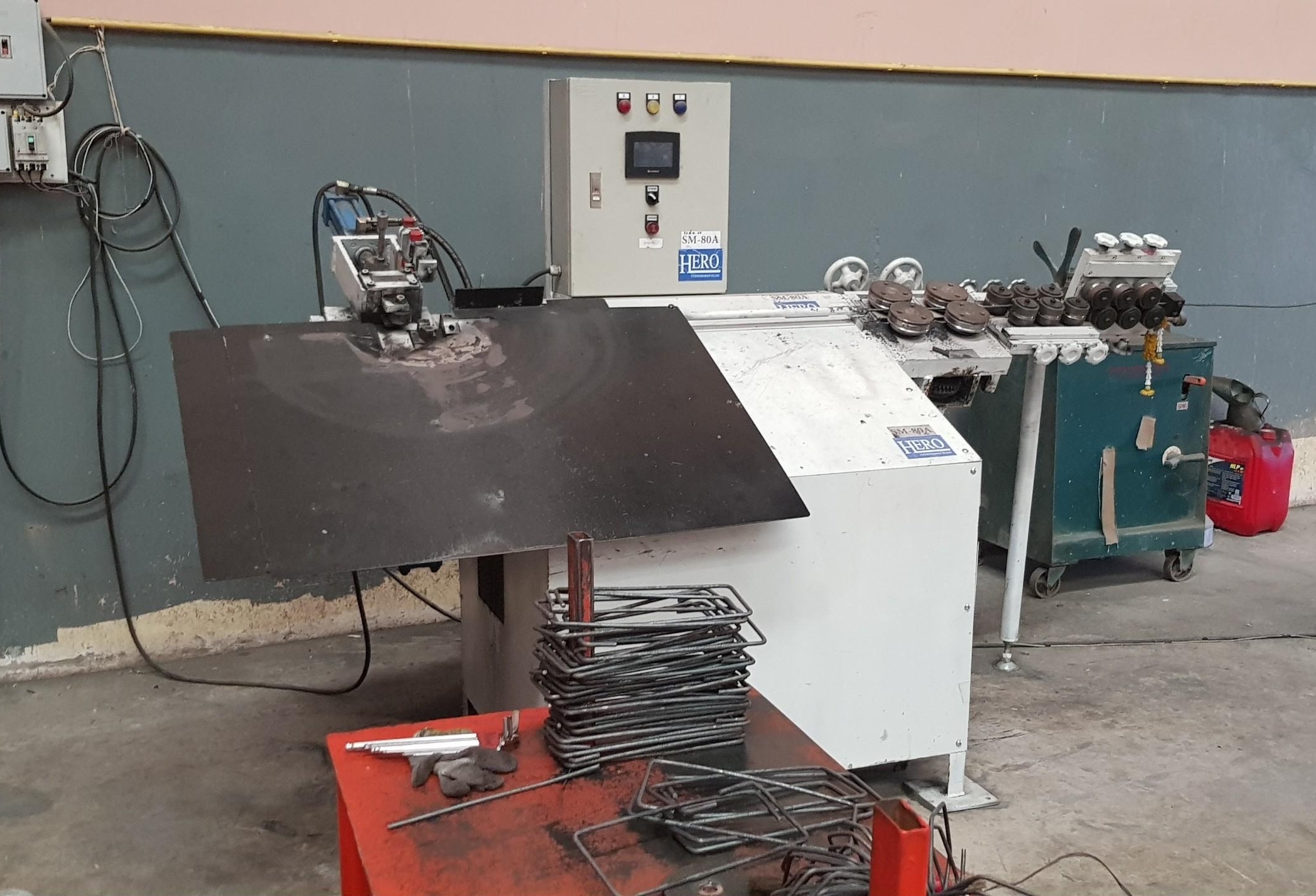

                                                                                         Automatic Stirrup Bending Machine

          The automatic stirrup bending machine is designed for bending steel bars with high precision and efficiency. The machine is capable of continuous 24-hour operation, making it suitable for mass production in construction and industrial applications. It is equipped with a PLC control system to ensure stable and accurate performance.

         The machine is encoder-controlled, allowing it to automatically complete multiple processes, including rebar feeding, straightening, bending, and cutting. All operations are performed automatically with high accuracy and repeatability. The maximum bending diameter of rebar is up to 6 mm.

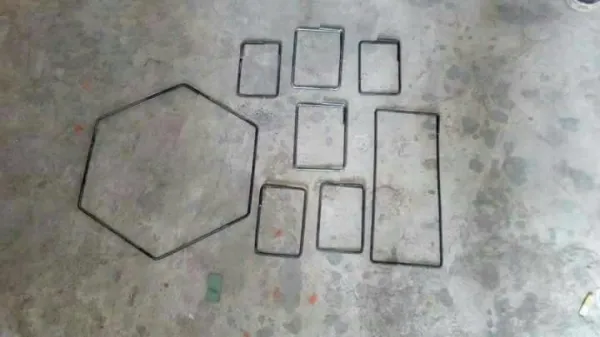

         This automatic stirrup bender is easy to operate and compatible with various steel bar applications. The entire system is controlled by a PLC, ensuring reliability and user-friendly operation. The machine supports multiple bending shapes, including L, I, U, square, rectangle, circle, and hexagon, providing flexibility to meet a wide range of construction requirements.

• Possibility to work diameters from 5 to 6 mm.
• Micro-controller CNC with PC to visualize graphically the data and sketch of the programmed stirrup. Control fitted for the connection to a LAN company net.
• Hydraulic unit with inbuilt oil/air cooling system and proportional valves.
• Bending pins in accordance with international law for wires from 5 to 6 m.
• Special feeding and bending group designed by our company in order to avoid wire-rotation and supply flat stirrups.
• Max feeding speed 120 mt/min, max bending-speed 1100°/sec.
• Possibility to use a picker on require

Automatic PLC steel bar bender stirrup bending machine price

The automatic stirrup bending machine controlled by encoder, can automatically accomplish elastic, straighten , stirrup bending, cutting and so on.

1.Automatically accomplish the functions of rebar's feeding, straighten, bending and  cutting.

· Max bending diameter of rebar is 6 mm;

· Continuously bend various stirrup of plane figure;

· Widely used in construction industry and rebar manufacturing enterprise;

· High efficiency and accurate processing precision

2.Working hour for 24 hours /  per day
3.Speical specification can be added by your requirments.
4.The shape are L, l, rectangle,square
5.The longlife spare spart are blade, rollers, bearing.

                        Calculate  of  working  24  Hours / Per Size

Automatic Bar Stirrup Bender Machine

        We are among the acclaimed firms, engaged in offering high qualitative Automatic Bar Stirrup Bender Machine. This machine is widely demanded by our clients for their excellent design, easy and reliable operation. The offered machine is available in various models and specifications, as per the requirements of our esteemed clients. High grade raw material is used by our professionals, along with contemporary production equipment to manufacture the entire range.

Features:  Sturdy construction
                 Durability
                 Compact design

Pre-sale Service

1.Supply item design,process design.

2.Help you to chose the fittest machine.

2.Making the machine according to your requirement (special requirement) such as quick speed, bend circle and so on.

Services

-Experienced professional engineers

-Advanced equipment

-24 hours online to keep in touch at any time

 If customer have any needs of customization or OEM service, please contact our staff for more information. For appearance change, like Logo, operating system background, outlook adding, print, language, it would be easy to achieve. For technology change, please contact us for more support
